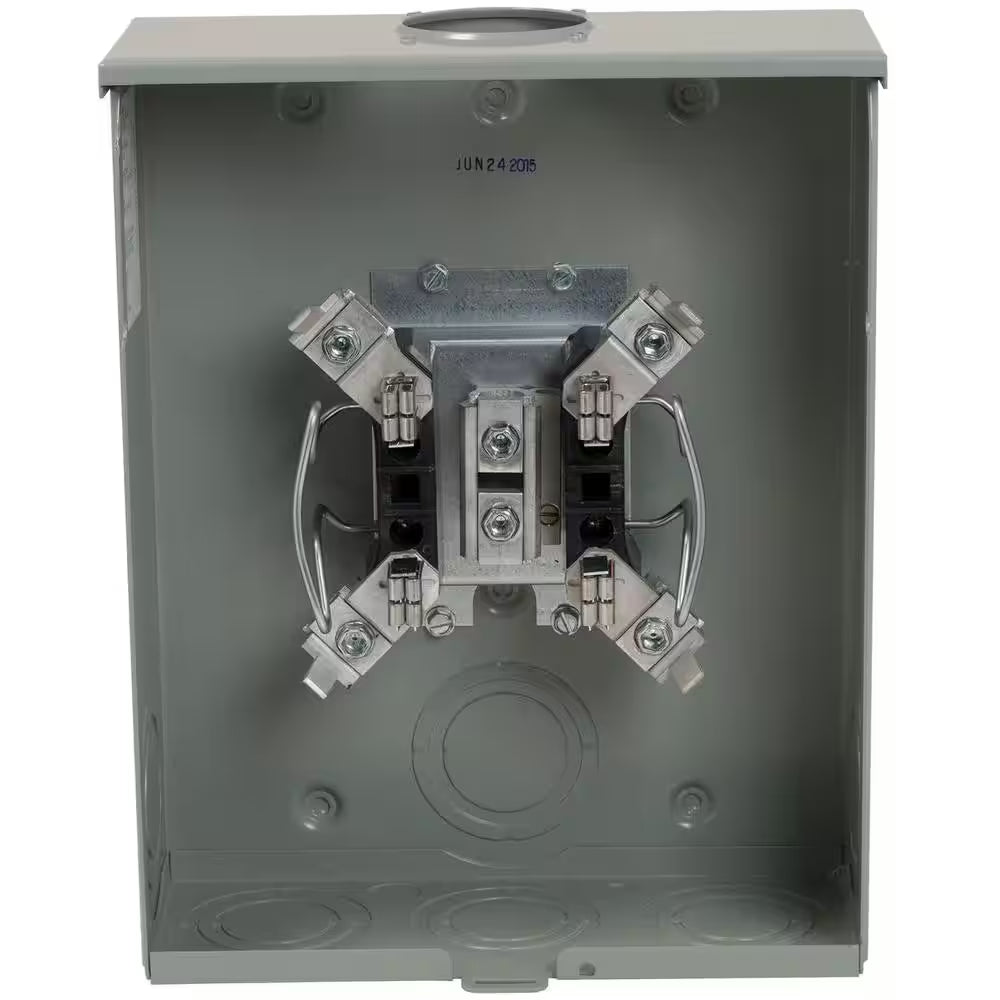

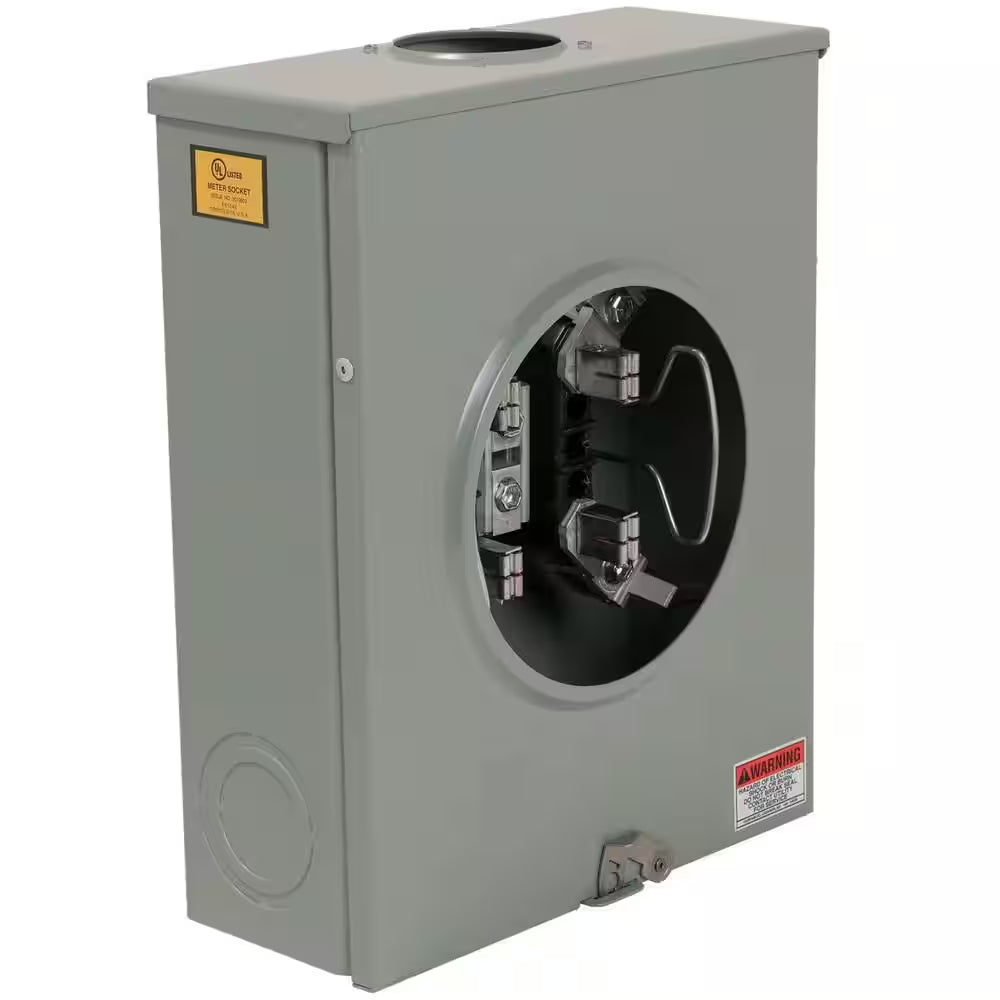

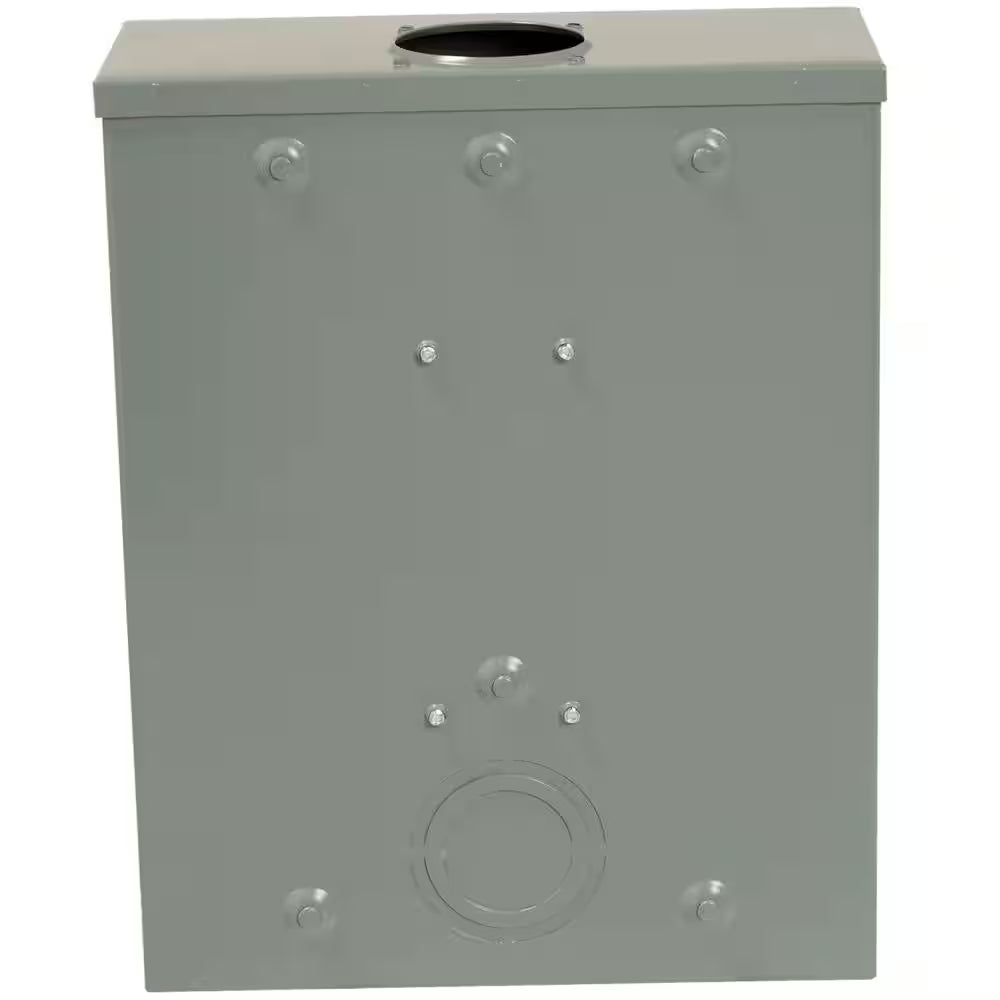

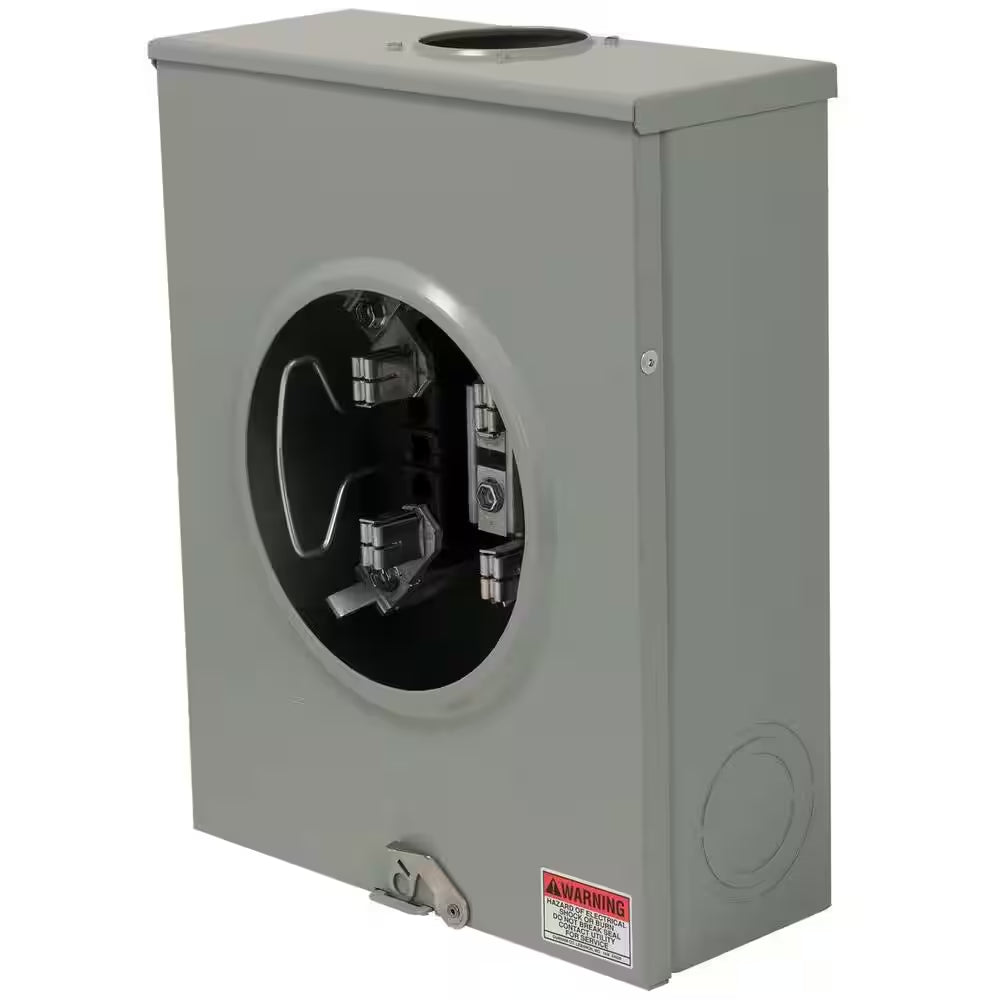

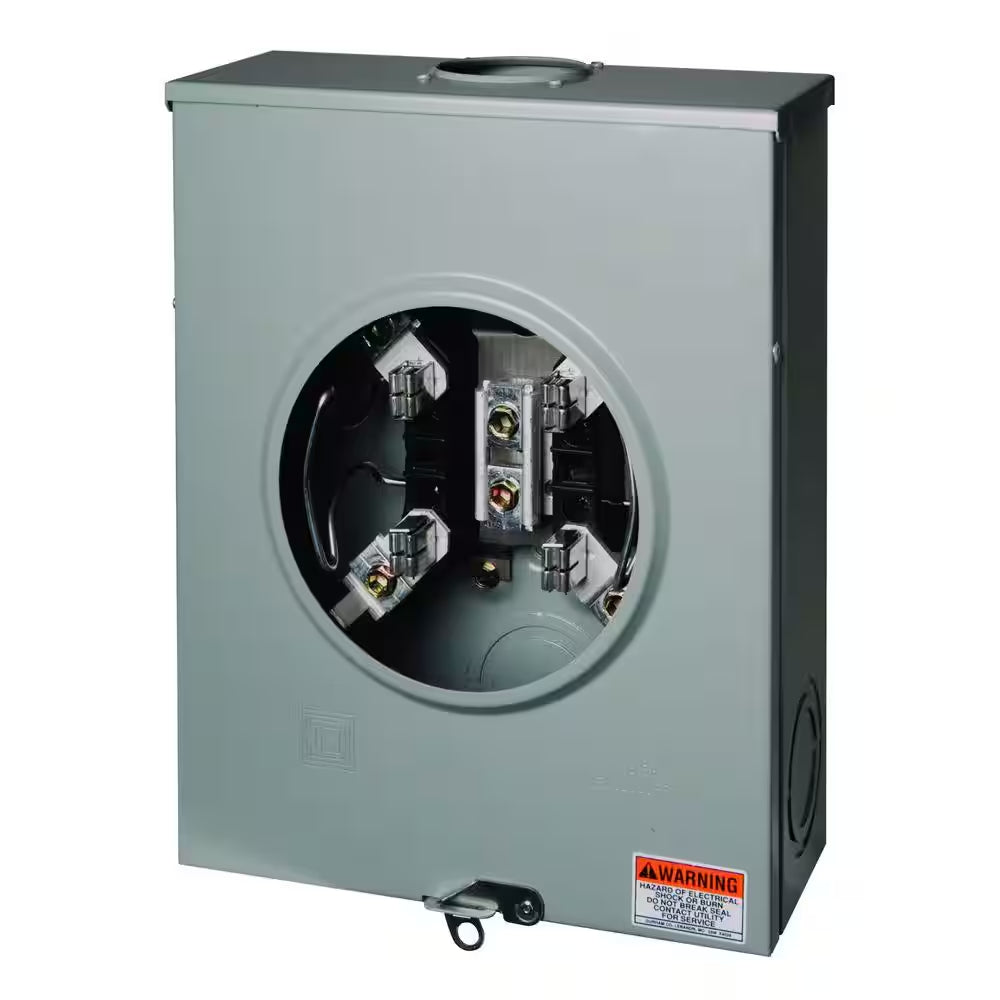

200 Amp Ringless-Horn Bypass Overhead or Underground Meter Socket with Tri-Plex Grounding
200 Amp Ringless-Horn Bypass Overhead or Underground Meter Socket with Tri-Plex Grounding
Regular price
$66.85 USD
Regular price
$0.00 USD
Sale price
$66.85 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Low stock: 10 left
- Square D 200 Amps meter socket
- Overhead/underground ringless-horn bypass
- Contact your local utility company to ensure requirements are met
The Square D 200 Amp Residential Ringless Meter Socket with horn bypass surface mounts to provide for a single electric meter. It accommodates multiple wiring configurations for A size hub provision in the top end wall and a 2-1/2 in. maximum knockout in the bottom end-wall. This electrical meter box uses an aluminum bus, is single phase, three wires, and features a NEMA 3R rated enclosure for outdoor use. This unit is ANSI certified and UL listed for use as service entrance equipment with a maximum load of 600 VAC Max. This 4-jaw meter socket is compatible with #250mcm Connectors maximum line and load conductor and neutral.

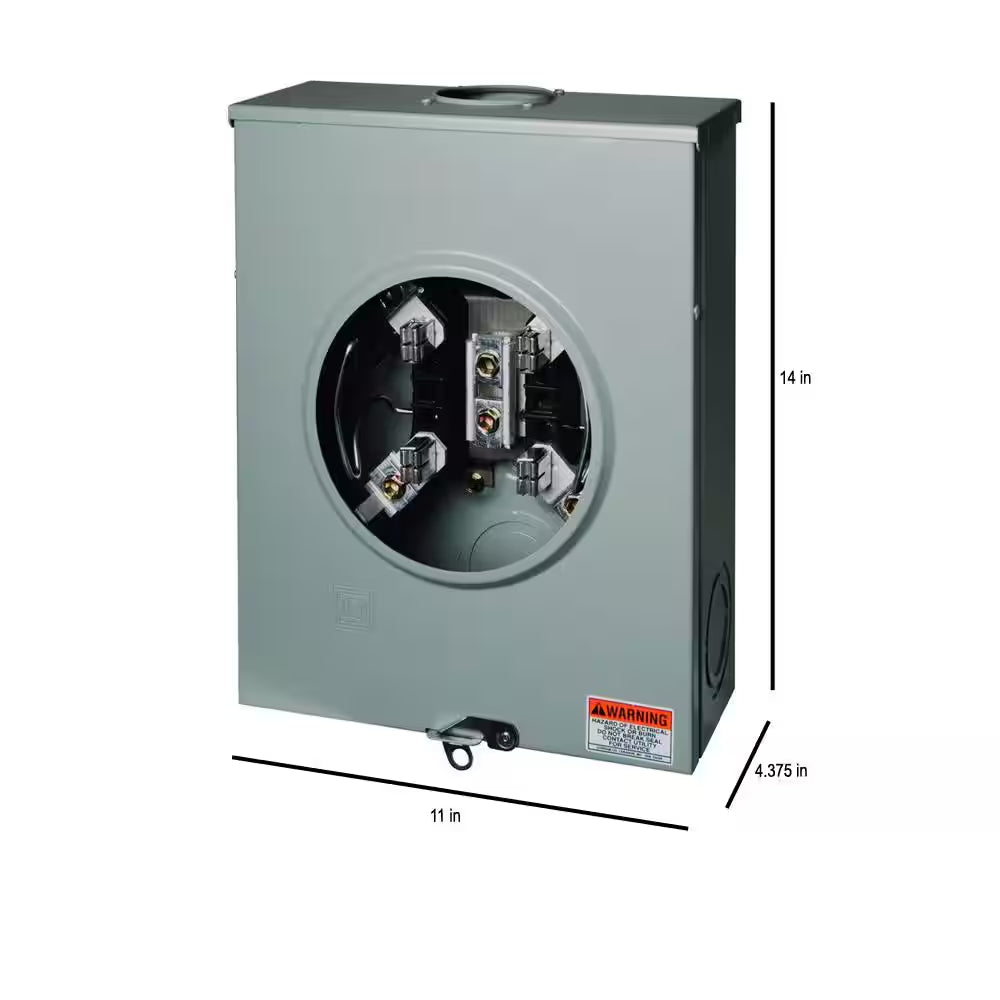

11.0 inches x 4.375 inches. Weight: 12.06 lb
| Bypass Type | Horn Bypass |
| Indoor/Outdoor | Outdoor |
| Maximum Amperage (A) | 200 A |
| Meter Socket Type | Ringless |
| Mounting Type | Surface |
| NEMA Configuration | NEMA 3R |
| Number of Circuits | 0 |
| Number of Gangs | 1 |
| Number of Jaws | 4 |
| Number of Spaces | 0 |
| Phase Type | 1 Phase |
| Power Distribution Features | No Additional Features |
| Product Weight (lb) | 12.06 lb |
| Returnable | 90-Day |
| Service feed type | Overhead/underground |
| Voltage (V) | 240 V |
| Certifications and Listings | ANSI Certified,UL Listed |
| Manufacturer Warranty | warrants equipment manufactured by it and sold through authorized sales channels to be free from defects in materials and workmanship for eighteen (18) months from date of invoice by or its authorized sales channel. |
| Product Depth (in) | 4.375 in |
| Product Width (in) | 11 in |
