400 Amp AC TRMS Clamp Meter, with NCV and Temp
400 Amp AC TRMS Clamp Meter, with NCV and Temp
Regular price
$61.85 USD
Regular price
$0.00 USD
Sale price
$61.85 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Low stock: 10 left
- UL certified CAT III 600-Volt
- True RMS AC voltage and current for accurate measurements

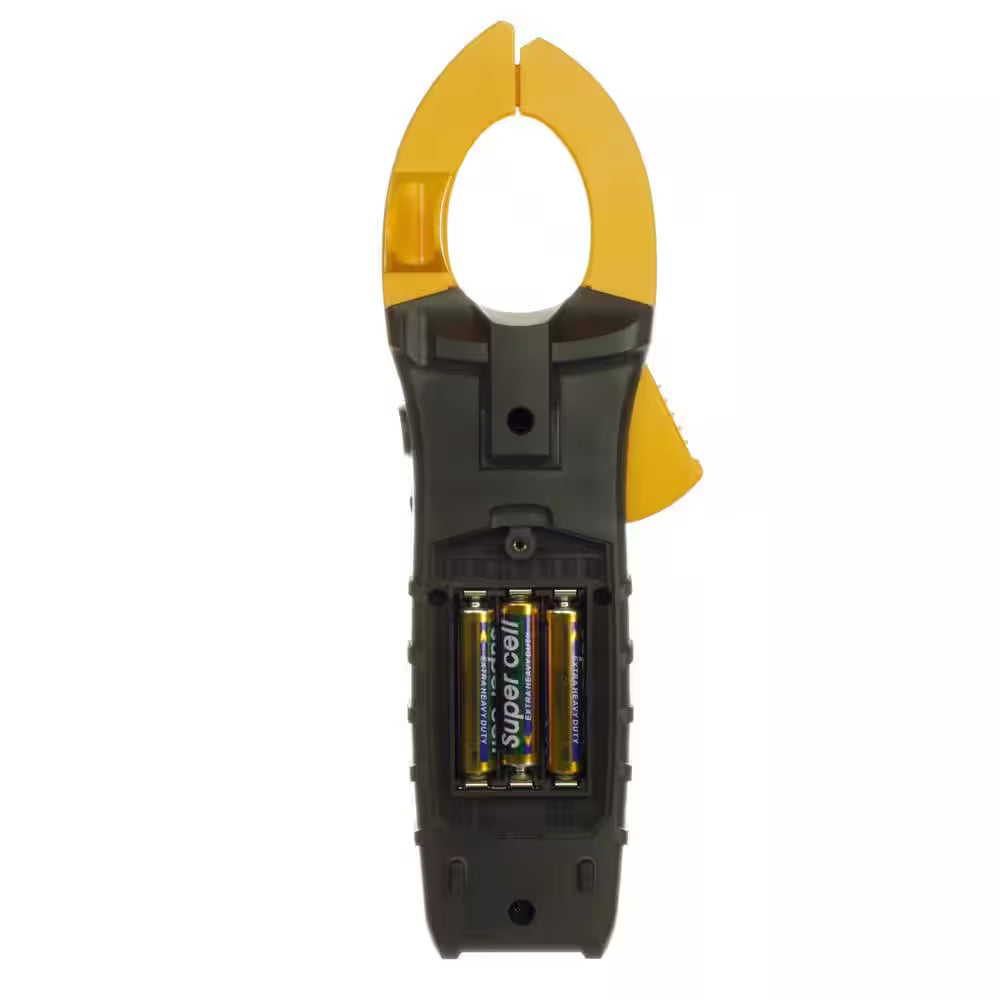

- AAA Batteries included

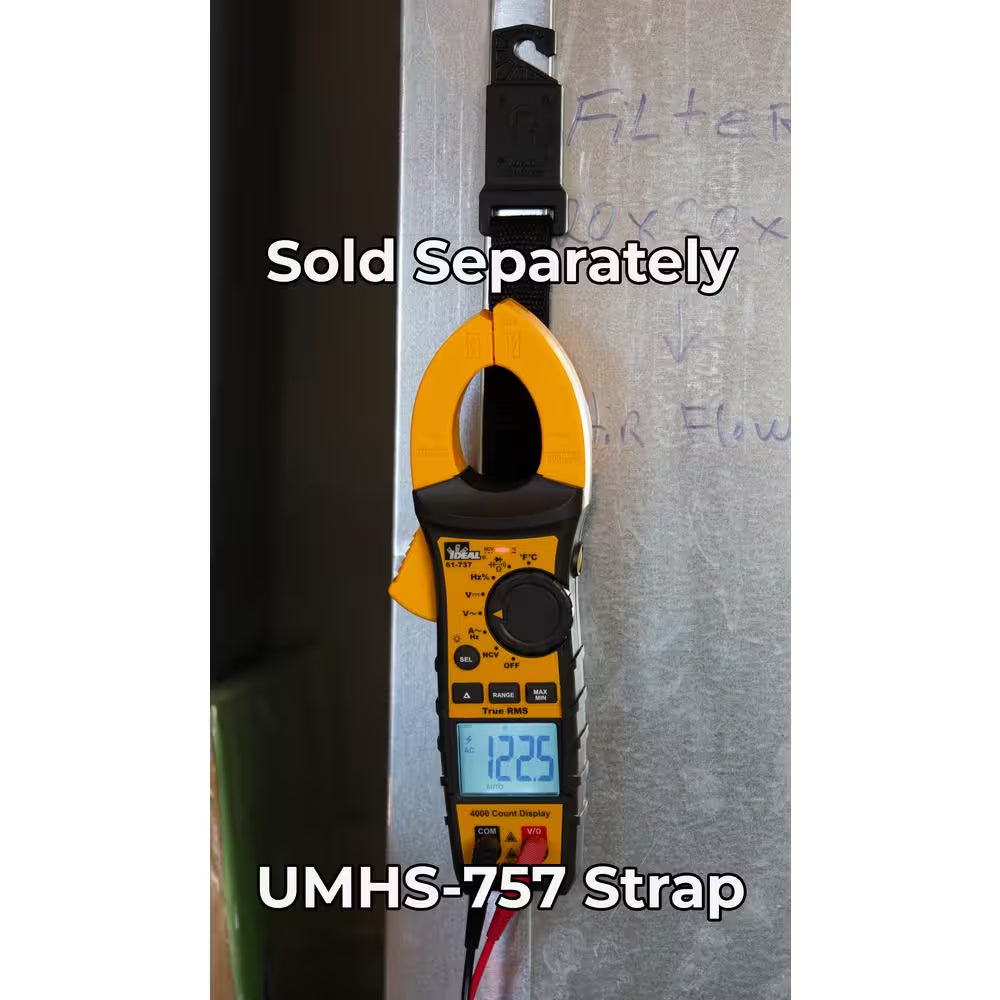

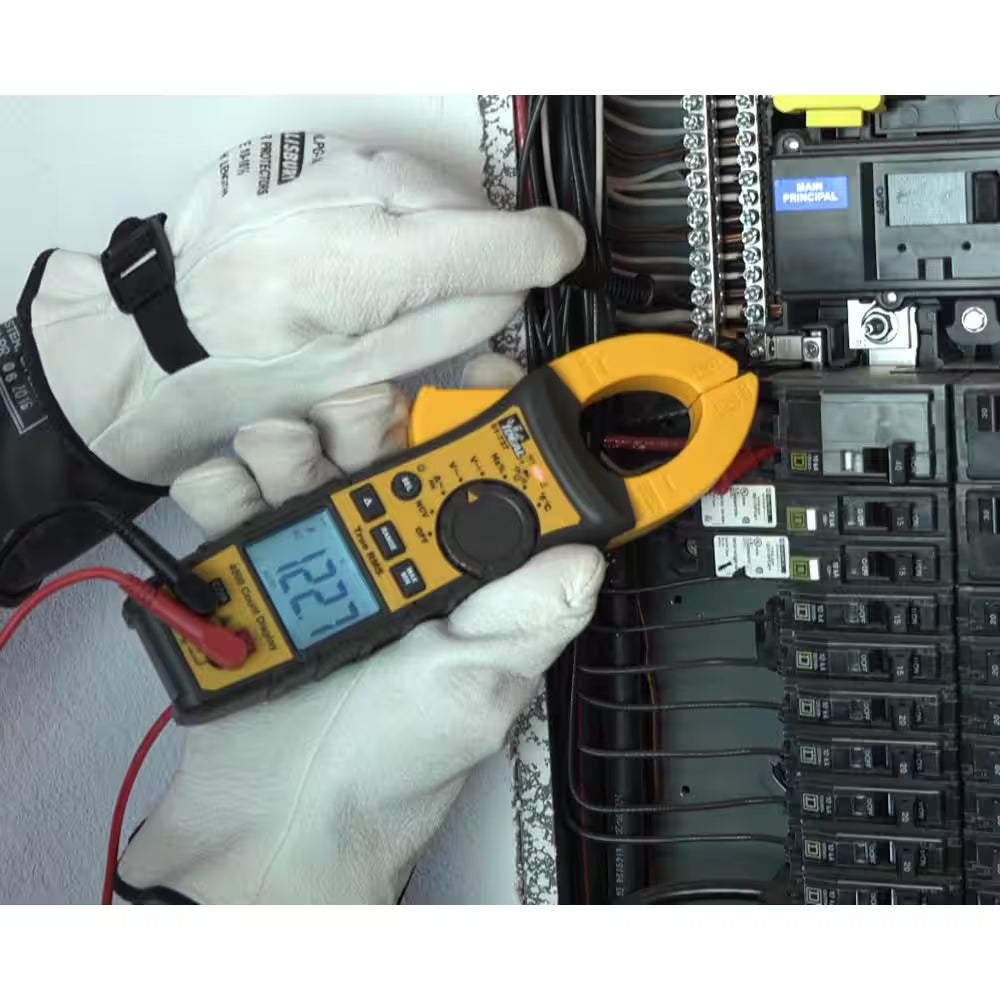

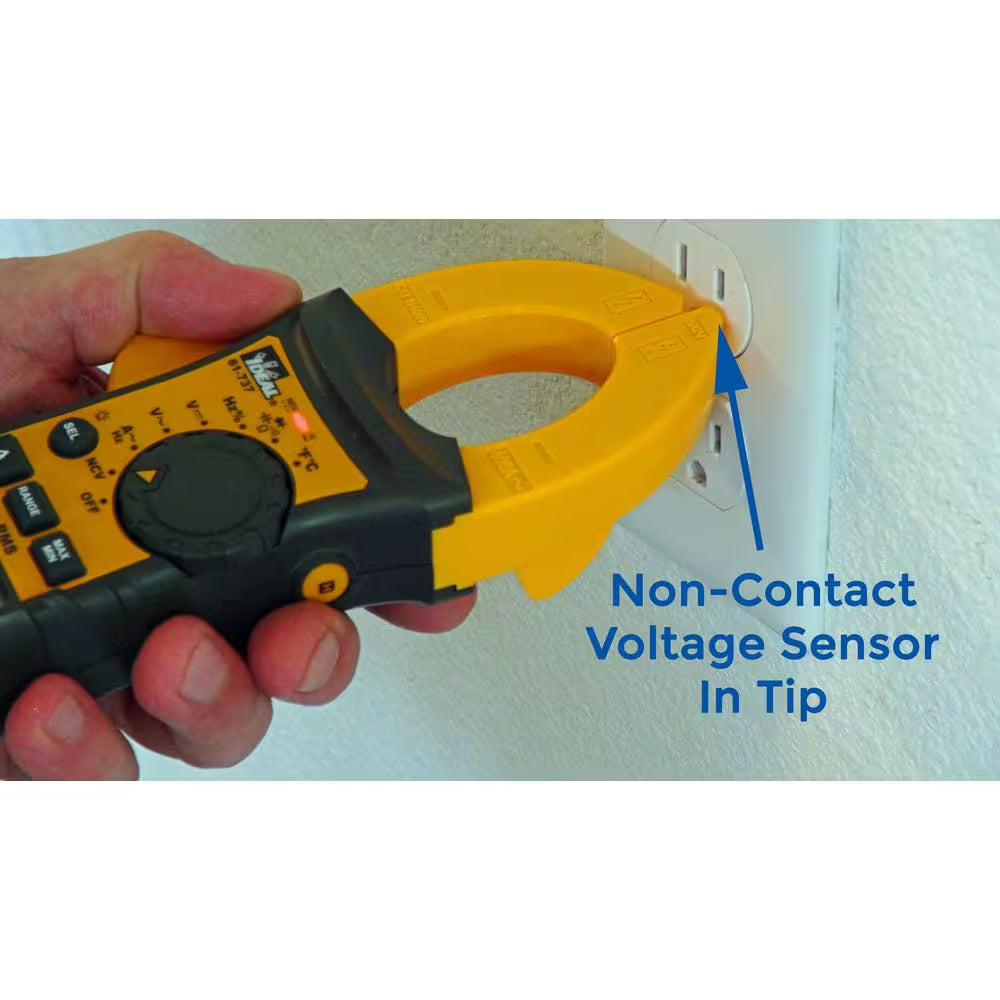

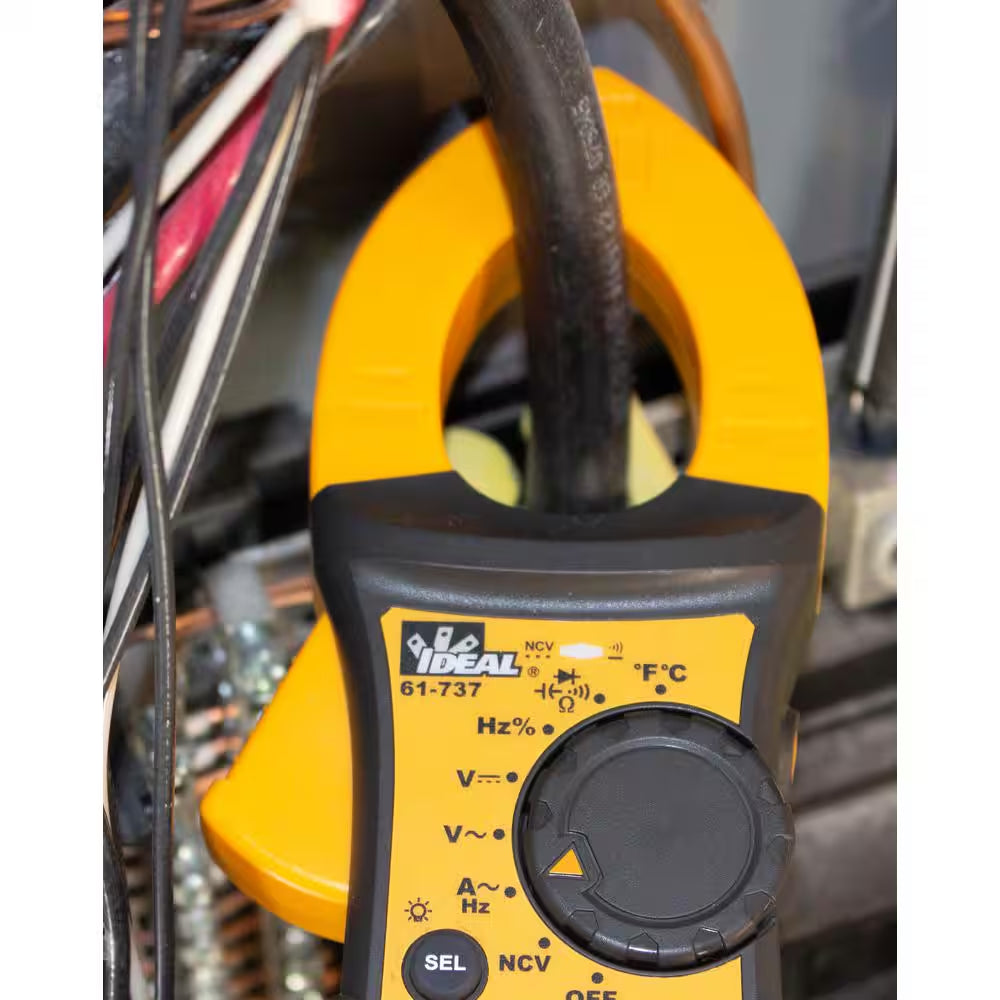

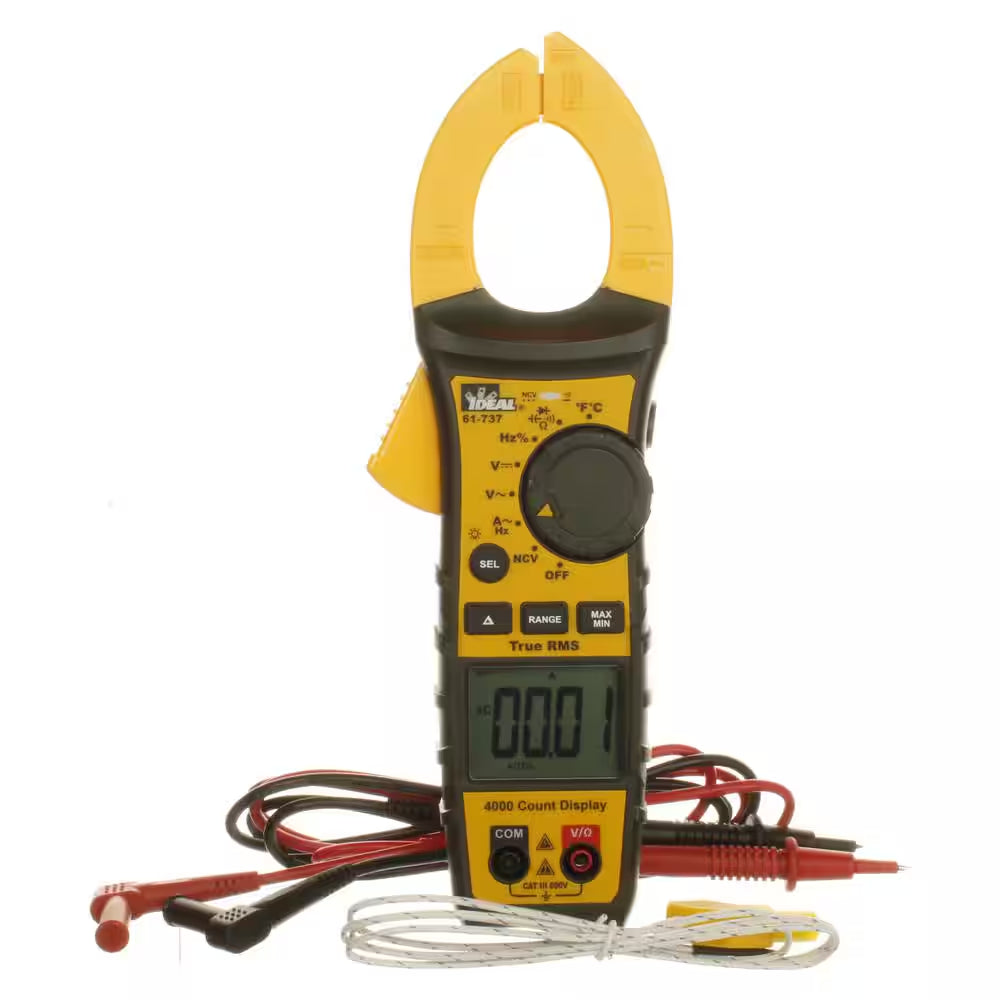

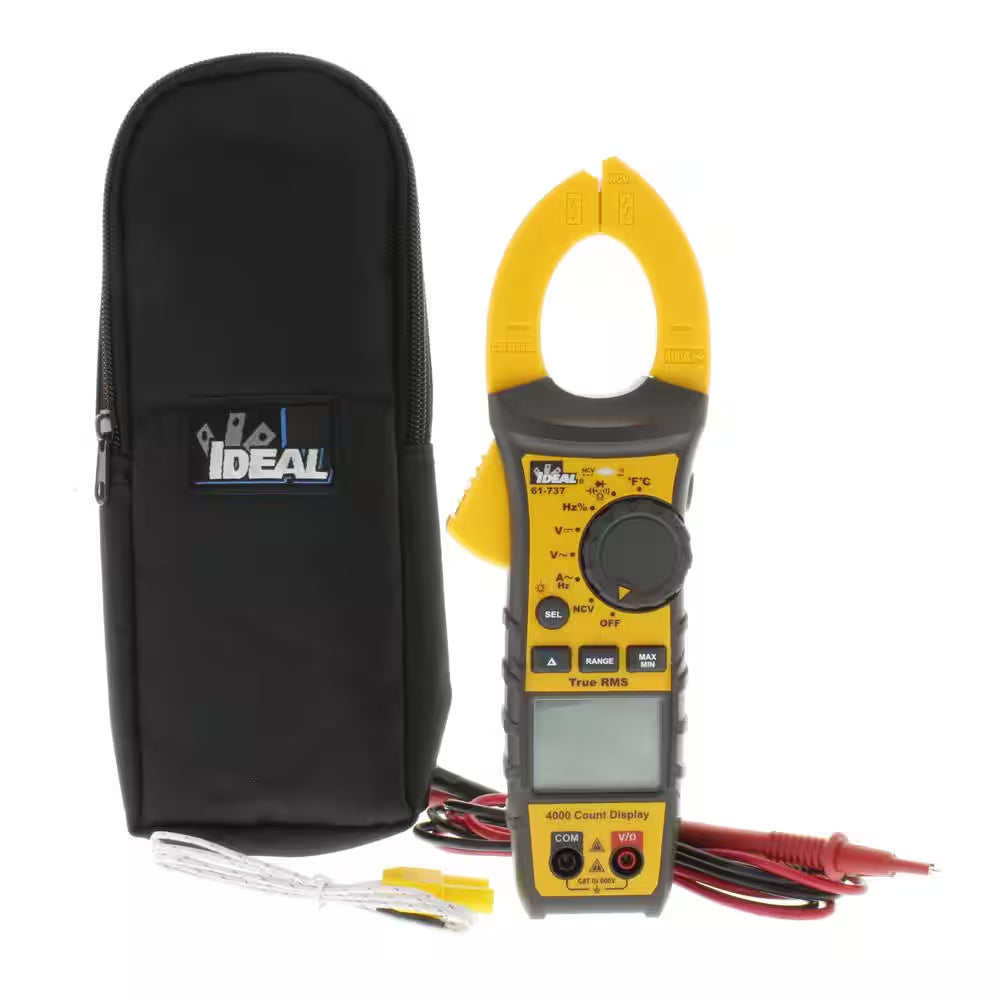

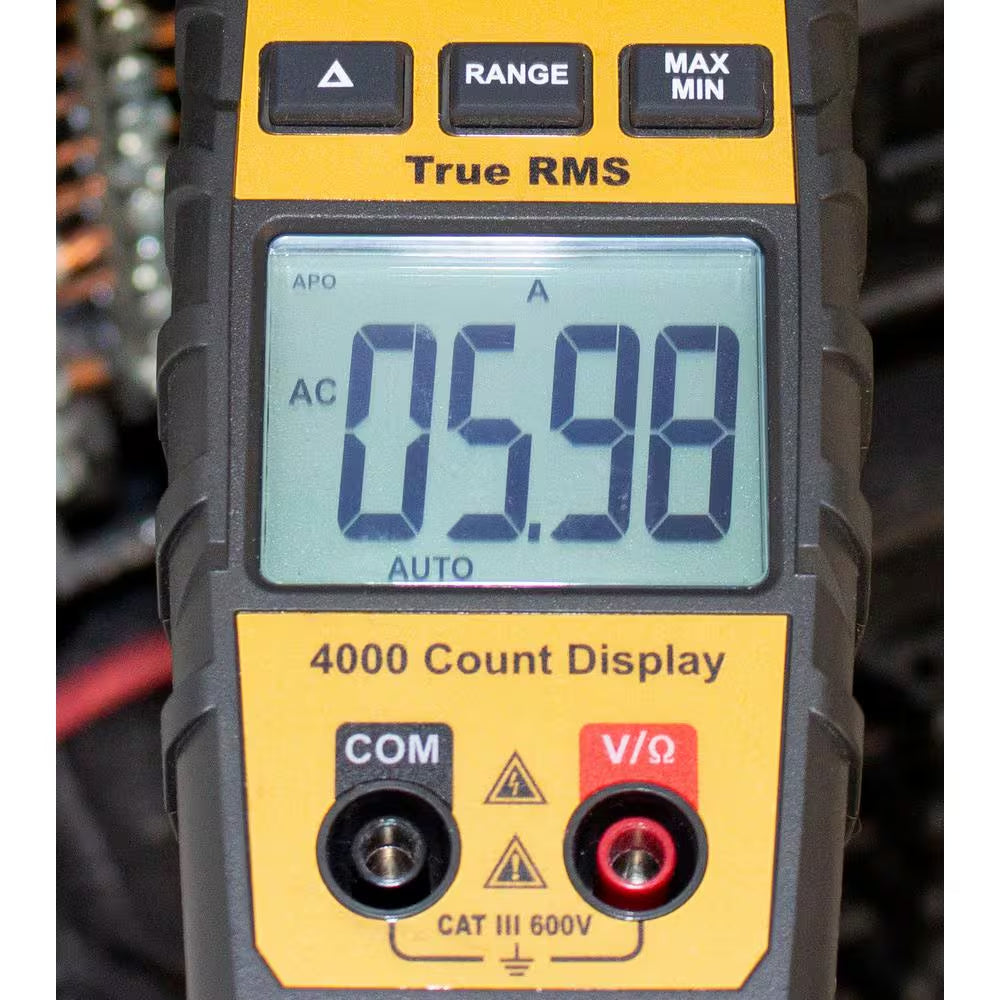

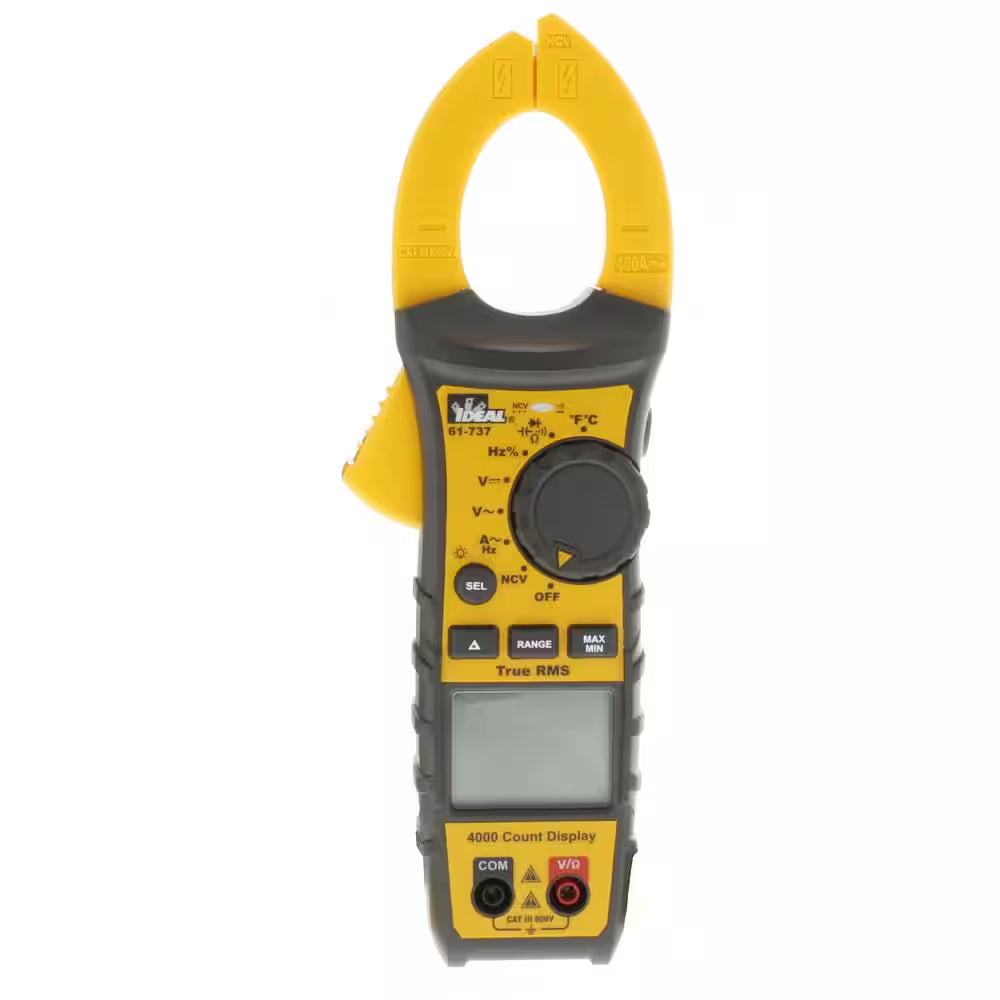

The IDEAL 61-737 clamp Meter is a CAT III auto ranging true root mean square (TRMS) digital clamp meter that measures up to 400 Amp AC via the clamp head. It measures up to 600-Volt AC and DC, frequency, resistance, continuity, capacitance, and diodes via test-leads (included) and measures temperature (F/C) via a K-Type thermocouple (included). It's capable of detecting the presence of voltage between 40-Volt to 600-Volt via a non-contact sensor in the right tip of the clamp. The large display can be backlit when working in poor or zero lighting conditions. The unit uses an illuminated red LED in the center of the meter and emits audible tones to notify when voltage is above 30-Volt, when continuity is detected and when the NCV senses voltage within its set range. The clamp head has a built-in probe tip holder on the backside of the right clamp to allow measurements holding the clamp in 1 hand and the second lead in the other hand. The meter has a hanging strap mount (compatible with all other IDEAL meters with this feature) that allows for a hanging strap (sold separately) to be attached to the meter so it can be hung from a nail, screw or magnetic surface. This meter features hold, minimum/maximum, relative, range, and selectable auto power off functions. The meter comes with 3 1.5-Volt AAA batteries and an easy open, fully accessible storage pouch with a belt loop that allows for meter, probe and thermocouple storage.
3.25 inches x 1.75 inches.
| Accuracy Measurement | True-RMS |
| Category Rating | III |
| Features | Audible Alert,Backlit,Data Logging,Interchangeable Leads,Low Battery Indicator |
| Functions Measured | Amperage,Capacitance,Continuity,Diodes,Frequency,Polarity,Resistance,Voltage |
| Included | Batteries,Case,Test Leads |
| Maximum AC Current (A) | 4 |
| Maximum AC Voltage | 600 |
| Maximum DC Voltage | 600 |
| Maximum Frequency (MHz) | 0 |
| Maximum Resistance (ohms) | Not Measured |
| Number of Functions | 11 |
| Power Source | Battery Operated |
| Range | Auto Ranging |
| Returnable | 90-Day |
| Certifications and Listings | No Certifications or Listings |
| Manufacturer Warranty | 2 years |
| Product Depth (in) | 1.75 in |
| Product Width (in) | 3.25 in |
